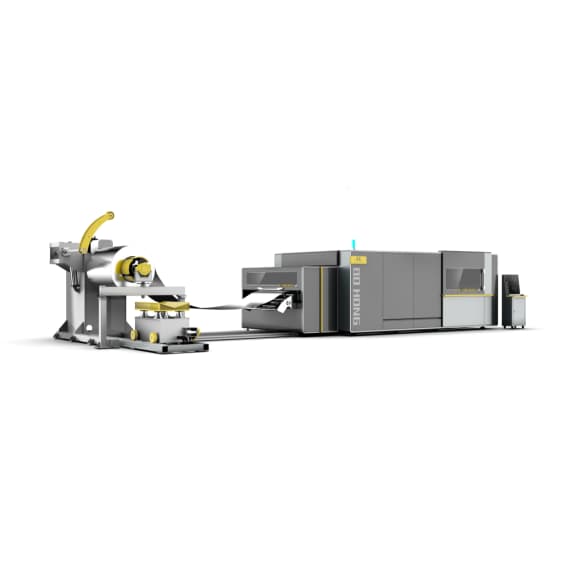

Single Station C Frame Coil Laser Cutting Line

The C frame version takes the entry-level idea and adds strength. The main change is in the leveler. It uses 13 rolls instead of 12. That one extra roll makes a real difference. Patterned sheets come out flatter and more stable. The pick table also gets an upgrade. This model uses a separate belt conveyor pick table. Finished parts move by belt to the pick area. Workers do not need to bend over the cutting table. This saves effort and adds safety. The Single Station C Frame Coil Laser Cutting Line works with material up to 3mm thick. That is 50% more than the standard 2mm limit. It covers more door parts and hardware pieces. The rack holds 10 to 15 tons. The full enclosure and integrated design stay the same as the A type. The line fits door faces, door heads, door posts, and cabinet boxes.

The Single Station C Frame Coil Laser Cutting Line runs on 3000W to 6000W laser power. The working area is 4200mm by 1600mm. The X-axis travel is 1550mm. The Y-axis travel is 4300mm. The Z-axis travel is 110mm. Positioning accuracy is ±0.02mm. Max acceleration is 1.2G. We write all standard configuration lists, optional items, and fees into the contract. Buyers know what is included in the price and what costs extra. All verbal talks go into the written contract. This avoids later misunderstanding. Acceptance standards and delivery times are also in the contract. Both sides sign and confirm. The line works with door industry ERP software. The system plans material type, quantity, and size each day. Width and length can be customized.

We give a 2-year warranty for the whole machine. We offer lifetime maintenance support. Before shipment, we assemble and test the machine. Buyers can send material for a test cut. We provide a complete test video. After installation, training covers start and stop steps, parameter adjustment, alarm recognition, and daily checks. Our team answers questions within one working day. We also help with line layout and daily service. The Single Station C Frame Coil Laser Cutting Line gives buyers a clear and strong choice for thicker door parts.
