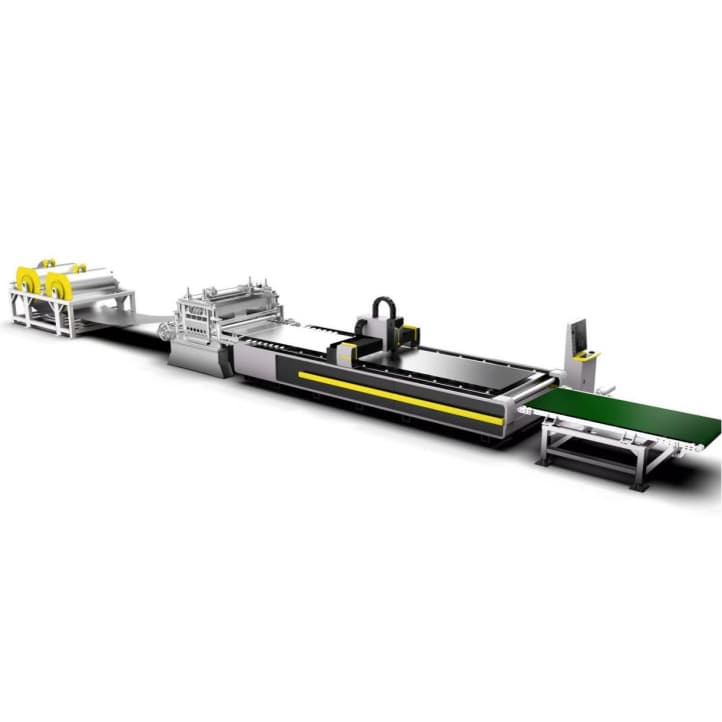

2 in 1 Coil Laser Cutting Line

Not every buyer has a wide workshop. Some factories have many pillars and narrow aisles. A separate coil rack and main machine cannot fit in the space. The 2 in 1 Coil Laser Cutting Line fits this space problem. The design puts the coil rack and the leveler on one base. The rack sits at the lower level and opens the coil. The leveling rolls sit at the rack exit. They press the coil flat right away. The flat sheet goes straight into the laser cutting area. The line removes the transition section between the rack and the leveler. The whole line is about one third shorter than a standard layout. The rack holds 5 tons. The leveler uses 9 rolls. The line works with 0.6mm to 2mm door faces, door heads, and door posts. The working area is 1500mm by 500mm. Buyers save floor space and setup time.

The machine covers 3000W to 6000W laser power. The X-axis travel is 550mm. The Y-axis travel is 1500mm. The Z-axis travel is 110mm. Positioning accuracy is ±0.02mm. Max acceleration is 1.2G. This line uses a 2-in-1 integrated rack structure. It saves floor space and lowers setup time. Buyers can send material for a test run. We provide a test video before shipment. Our team also helps with installation and operator training. The line works with door industry ERP software. The system plans material type, quantity, and size each day. Width and length can be customized. The line is not locked to one fixed size.

We write all acceptance standards, delivery times, and warranty terms into the contract. The 2 in 1 Coil Laser Cutting Line comes with a clear contract. The machine ships with a complete manual, electrical drawings, special tools, and a set of random spare parts. After site debugging, operators receive at least one full day of hands-on training. The training covers normal start and stop steps, common process parameter adjustment, common alarm code recognition, and daily check items. Our team answers questions within one working day. We also help buyers plan the line layout before shipment.
