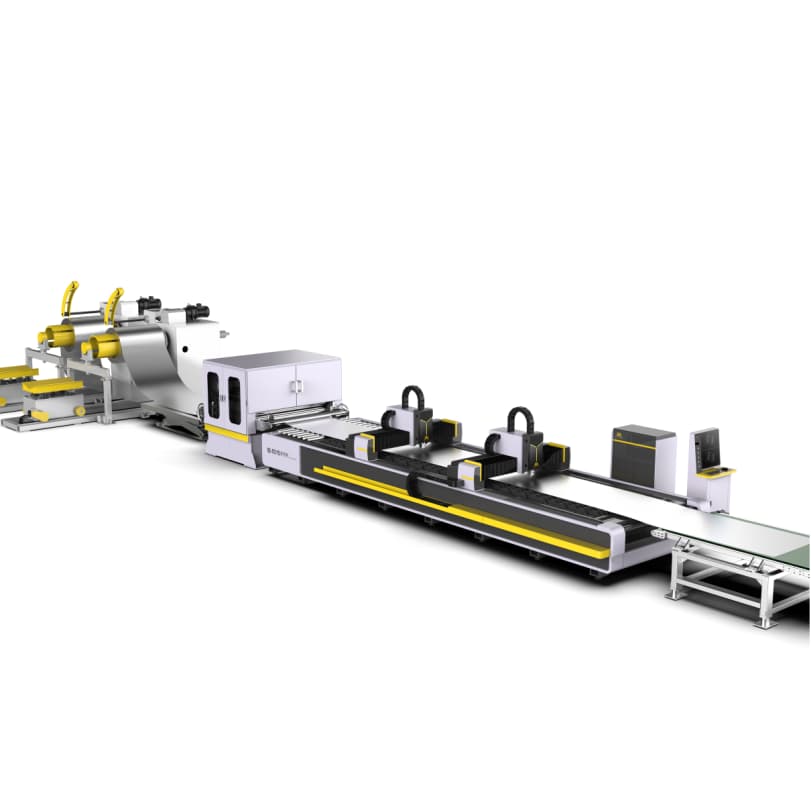

Dual Head Heavy Duty Coil Laser Cutting Line

Some buyers see orders grow two or three times. One line cannot meet the delivery date. Two lines cost too much and take too much floor space. The Dual Head Heavy Duty Coil Laser Cutting Line gives a middle option. One machine carries two laser sources and two cutting systems. Both heads cut at the same time. Two 12-ton heavy coil racks sit side by side. One coil cuts. The other coil waits for a change. The control system sends different cutting files to each head. The left head can cut door frames. The right head can cut door heads. Both jobs finish on one machine. The Z-axis travel is 170mm. The line works with 0.6mm to 2mm material. This design saves money compared with two independent machines. It also saves floor space. Buyers get a strong machine for large orders.

The machine covers 3000W to 6000W laser power. The working area is 6300mm by 1600mm. The X-axis travel is 1600mm. The Y-axis travel is 6300mm. The Z-axis travel is 170mm. Positioning accuracy is ±0.02mm. Max acceleration is 1.2G. The line uses the PTmacro master control system. It works with door industry ERP software. The system plans material type, quantity, and size each day. Width and length can be customized. The line is not locked to one fixed size. Buyers can mix different colors or models in one MOQ order. The MOQ is one machine. There is no high minimum quantity. We accept third-party inspection. We do 100% inspection before packing. If goods arrive damaged, we discuss a solution with the buyer.

We accept USD and RUB. Standard products use 30% deposit and 70% balance before shipment. Custom products use 50% deposit and 50% balance after acceptance. Bulk orders can get a step discount. The discount depends on order value and configuration. Export packing uses inner protection, aluminum foil vacuum bag, buffer material, export wooden case or plywood case, and IPPC wooden pallet. This keeps the machine safe during transport. We support EXW. Buyers can arrange transport with their own forwarder. The Dual Head Heavy Duty Coil Laser Cutting Line gives clear terms for global buyers.
