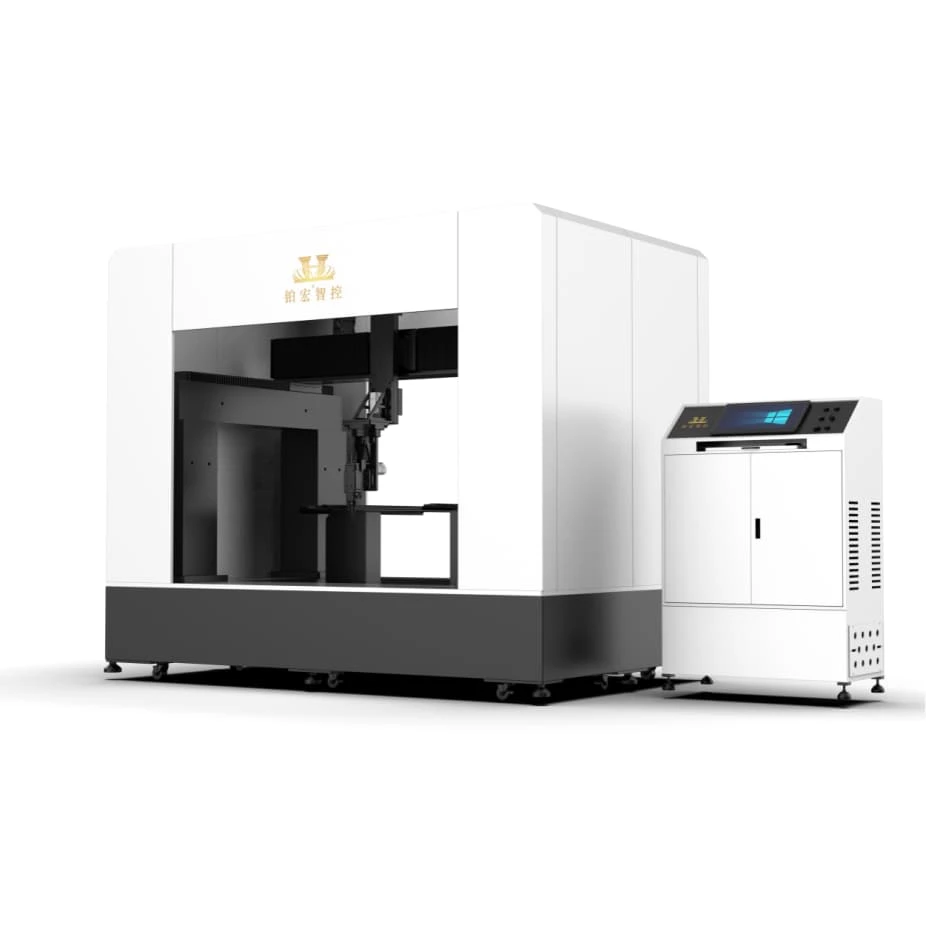

3D 6 Axis Precision Laser Cutting Machine

Flat cutting cannot solve all problems. Bent tubes, stamped parts, welded assemblies, and curved surfaces often need edge cutting, hole opening, or trimming. A flat cutter cannot hold these parts. The 3D 6 Axis Precision Laser Cutting Machine is built for these jobs. A six-axis robot moves the cutting head freely in space. It can work at any angle up to 270 degrees. A lightweight anti-collision 3D cutting head protects the machine. If the head hits a part, it pulls back automatically. Cutting molds are custom-made for each product. The cut seam is flat and has almost no burrs. The machine supports offline programming. Buyers can import a 3D model and generate the cutting program. A new product version only needs a drawing change. No new mold is needed. The machine can work with a positioner and a dual-station table. One robot serves two stations in turn. The 3D 6 Axis Precision Laser Cutting Machine gives flexible cutting for complex parts.

The 3D 6 Axis Precision Laser Cutting Machine works with carbon steel, galvanized sheet, stainless steel, and aluminum alloy. The moving range is 1600mm by 700mm. The X-axis travel is 1600mm. The Y-axis travel is 800mm. The Z-axis travel is 700mm. Positioning accuracy is ±0.02mm. Our R&D center in Hangzhou works on offline programming software and path optimization algorithms. The Yongkang factory handles robot integration and custom fixture processing. Buyers can send 3D drawings. We run a path simulation before production. A full enclosure laser safety room is standard. The operation door has a safety interlock. The laser stops when the door opens.

We support the 3D 6 Axis Precision Laser Cutting Machine with clear service terms. Before shipment, we assemble and test the machine. Buyers can send material for a test cut. We provide a complete test video. After installation, training covers start and stop steps, parameter adjustment, alarm recognition, and daily checks. Our team answers questions within one working day. We also help with fixture design and daily service. The machine comes with a 2-year warranty and lifetime maintenance support.
