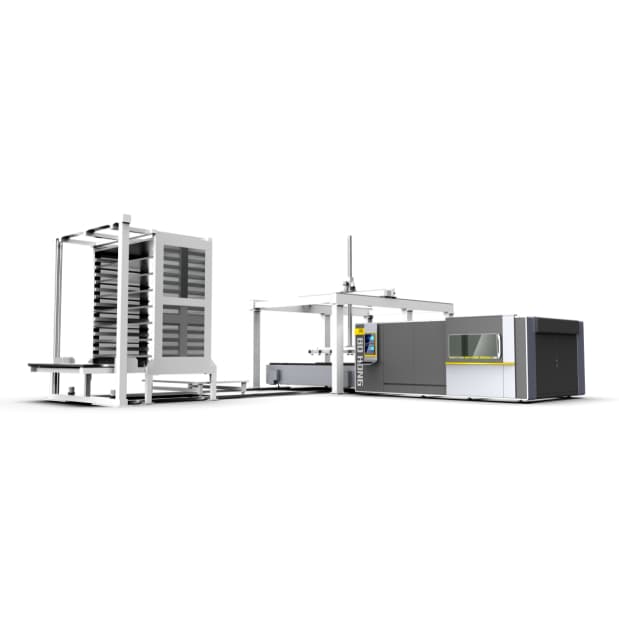

Tower Gantry Loading Robot

A common gantry robot needs a worker to stack sheets in a set place. Then it takes one sheet at a time. The Tower Gantry Loading Robot automates the front step. Sheets go straight into the tower. The system identifies the sheet size, takes the sheet, and loads it. The tower has several layers. Different materials or thicknesses sit on different layers. The system picks the right layer for the day's cutting task. The loading thickness is 0.8mm to 3mm. The work piece weight is 100kg. The sheet size is 3050mm by 1250mm. The stacking height is 120mm. The cycle time is 45 seconds. Placement accuracy stays within 2mm. The Tower Gantry Loading Robot works with a full-enclosure exchange table laser cutter. Sheets go from the tower to the cutting table with no worker involved.

We accept custom requests for non-standard sizes. The machine size, travel parameters, and fixture type can all change with the real work conditions. We have professional technicians who worked in door factories for years. They suggest a plan from the buyer's real production process. They do not just pick a standard model from a parameter sheet. The Tower Gantry Loading Robot fits buyers who want a smaller labor team and a steady sheet feed. The machine works with door industry ERP software. The system plans material type, quantity, and size each day.

We support the Tower Gantry Loading Robot with a clear service system. When a buyer reports a fault, we give a first solution within 1 hour. We use phone or video help first. Remote help can solve many common issues fast. If remote help fails, we send a technician. We tell the buyer the expected arrival time before the trip. During warranty, machine body quality problems get free repair and free replacement parts. Wearing parts and site environment problems are not free. The machine comes with a 2-year warranty and lifetime maintenance support.
