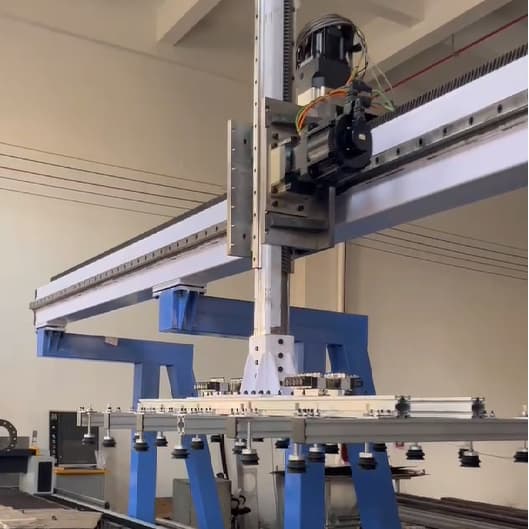

Single Beam Gantry Robot

Some workshops are not wide enough for a double-beam gantry. The Single Beam Gantry Robot uses one main beam across the machine. The frame is more compact. It fits shops with tight space. It still has X, Y, and Z servo drive. It still picks and places sheets automatically. The single beam weighs less than a double beam. It needs less roof support strength. The steel frame goes through aging treatment. Internal stress is removed. The structure stays stable for long runs. Precision linear guides and servo drive give high repeat accuracy. It fits small and medium laser cutting lines. The PLC control system is easy to use. Running parameters can be set freely. The Single Beam Gantry Robot gives a space-saving handling choice.

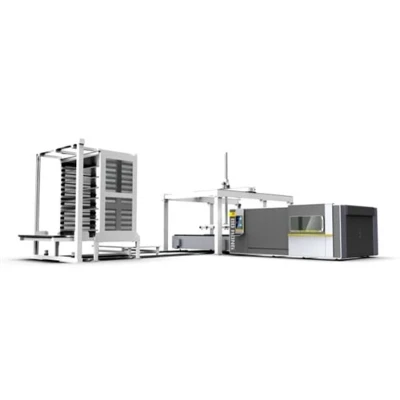

The Single Beam Gantry Robot has a load of 60kg. The moving range is 5800mm by 1600mm. Positioning accuracy is ±0.02mm. Rapid traverse speed is 60M/min. The structure is a single-beam gantry. The drive uses X, Y, and Z servo linkage. It fits workshops with limited space. Travel, load, and fixture can be customized. We make sure each second-level category has at least two models. This robot sits in the material handling group. The same group also has a double-beam version and a tower version. Our factory has a showroom in Huajie Town, Yongkang. Buyers can watch each robot run in person. They can compare the strong and weak points of different models. The Single Beam Gantry Robot gives buyers a clear view before they buy.

We support the Single Beam Gantry Robot with a clear service system. Before shipment, we assemble and test the machine. Buyers can send material for a test run. We provide a complete test video. After installation, training covers start and stop steps, parameter adjustment, alarm recognition, and daily checks. Our team answers questions within one working day. We also help with line layout and daily service. The robot comes with a 2-year warranty and lifetime maintenance support.
