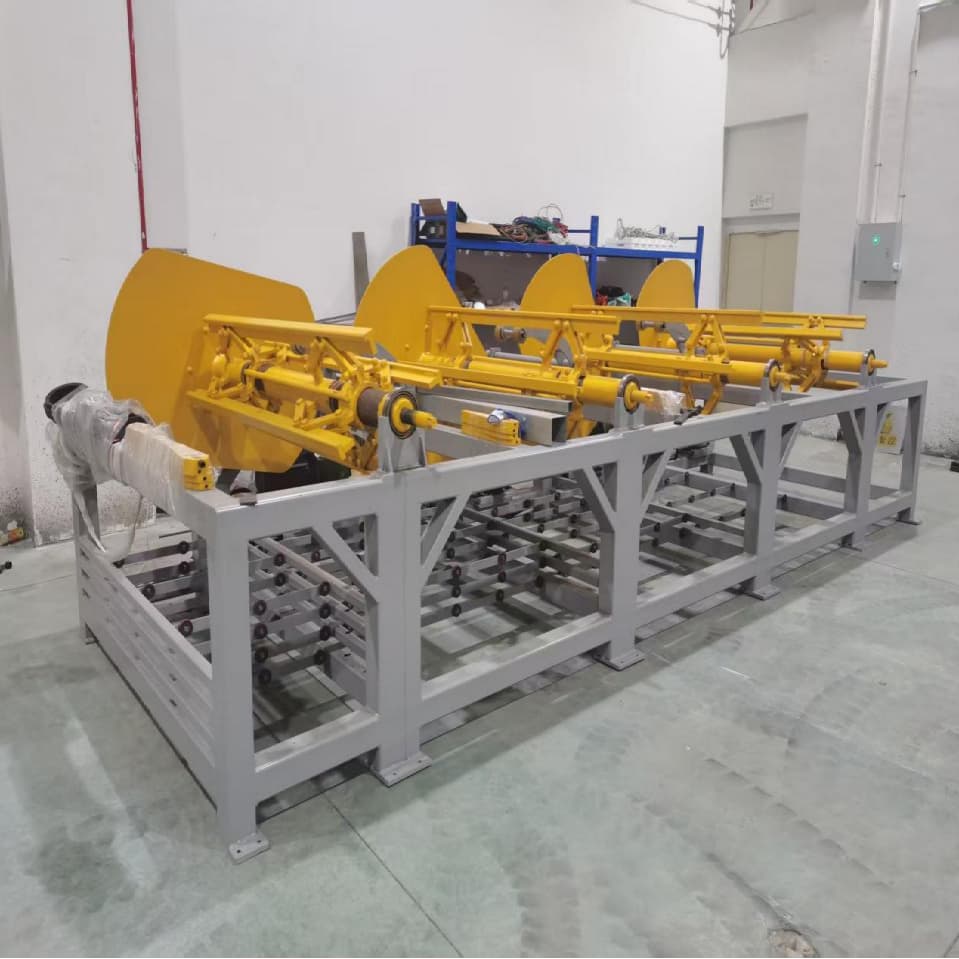

4 in 1 Decoiler

A coil line front end often needs four separate machines. They are a decoiler, a feeder, a correction unit, and a leveler. The 4 in 1 Decoiler puts all four functions on one platform. The coil goes on the rack. The material feeds through the leveling rolls. A servo feeder controls the speed. A correction system keeps the sheet on track. The whole front-end process runs in one place. This design cuts the connection points between machines. The material path is shorter. The chance of running off track is lower. The 4 in 1 Decoiler saves floor space and makes the line layout cleaner.

The 4 in 1 Decoiler uses a manual tightener for the coil. A step motor drives the shaft. The motor supports forward and reverse turning. A belt drive moves the material. A pneumatic system tightens and releases the belt. A press arm holds the coil steady. The machine can feed material in layers. This helps when the line runs different sheet types. The 4 in 1 Decoiler works with coil thickness from 0.6mm to 2.5mm. The coil width is 1500mm. The running speed is 16 meters per minute. The whole unit weighs about 2000kg. It fits coil laser cutting lines and stamping lines. The 4 in 1 Decoiler gives buyers a strong and simple front end.

We make the 4 in 1 Decoiler for global buyers who need clear data. The machine supports coil thickness from 0.6mm to 2.5mm. The coil width is 1500mm. The running speed is 16m/min. The machine weight is 2000kg. The drive uses a step motor. The belt drive supports forward and reverse. The tightener is pneumatic. We accept custom requests for width and load. Our team helps buyers plan the line layout. We also provide a test run before shipment. The 4 in 1 Decoiler comes with a 2-year warranty and lifetime maintenance support.
