Saves Floor Space in Small Shops

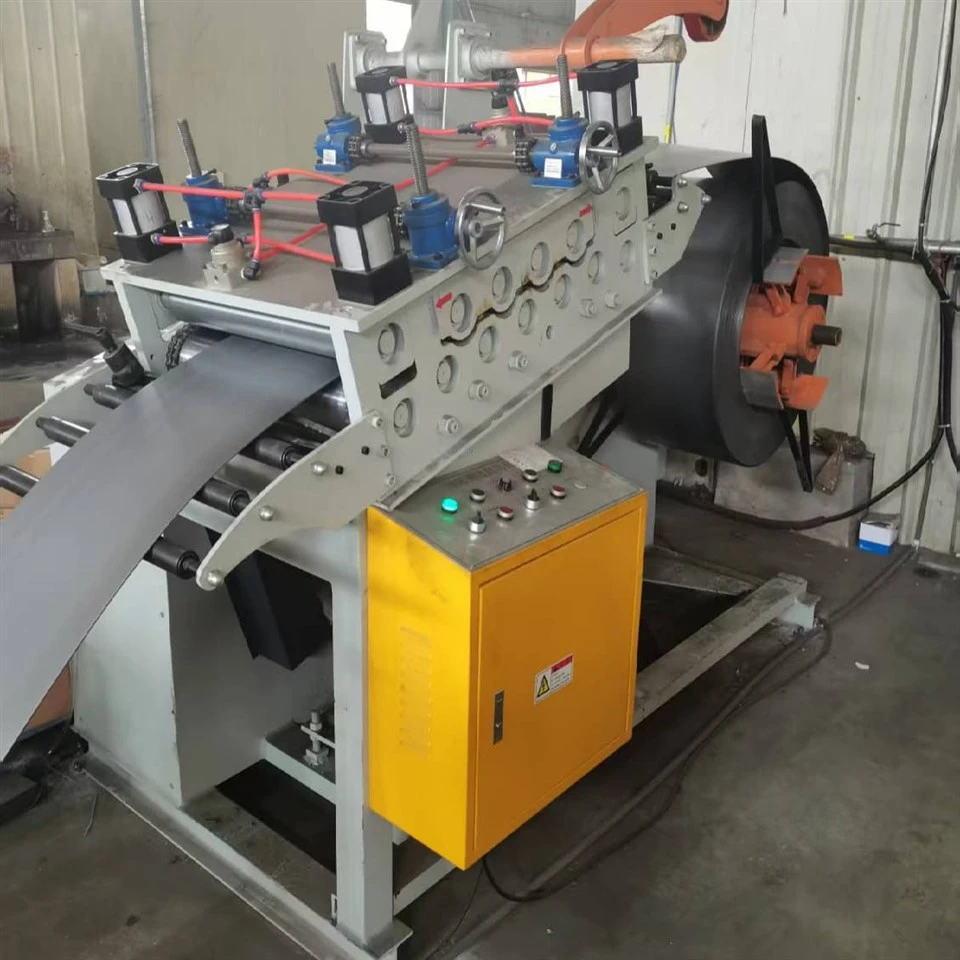

Many workshops have limited floor space. A separate decoiler and leveler take up a lot of room. The 2 in 1 Decoiler puts both functions on one base. The coil rack sits at one end. The leveling rolls sit at the other end. The coil opens and goes straight into the leveler. The flat sheet comes out ready for the cutter. This design removes the transition section between two machines. The whole unit is much shorter than a split setup. The 2 in 1 Decoiler fits shops with tight space. It works well for small and medium coil widths. Buyers who cannot fit a full line can still get automatic uncoiling and leveling.

Combines Uncoiling and Leveling

The 2 in 1 Decoiler uses a hydraulic tightener to hold the coil. A press arm keeps the coil surface steady. The leveling rolls use a top-four and bottom-five arrangement. This layout gives good leveling accuracy. A pneumatic clamp feeds the material. The feed stays smooth. The machine works with coil width up to 500mm. The sheet thickness range is 0.6mm to 2.0mm. The leveling roll count is 9. The running speed is 16 meters per minute. The whole unit weighs about 1000kg. It is easy to move and install. The 2 in 1 Decoiler gives buyers a simple and compact solution for coil feeding.

Clear Data for Buyers

We build the 2 in 1 Decoiler for global buyers who need clear facts. The machine model is BH-500ER-A. The leveling thickness is 0.6mm to 2.0mm. The coil width is 500mm. The leveling roll count is 9. The running speed is 16m/min. The machine weight is 1000kg. We accept custom requests for width and load. Our team helps buyers choose the right setup for their material. We also provide a test video before shipment. The 2 in 1 Decoiler comes with a 2-year warranty and lifetime maintenance support.

Clear Service and Warranty

We support the 2 in 1 Decoiler with a clear service system. Before shipment, we assemble and test the machine. Buyers can send material for a test run. We provide a complete test video. After installation, training covers start and stop steps, parameter adjustment, alarm recognition, and daily checks. Our team answers questions within one working day. We also help with line layout and daily service. The machine ships with a manual, electrical drawings, tools, and random spare parts. The 2 in 1 Decoiler gives buyers a reliable start for their coil line.
