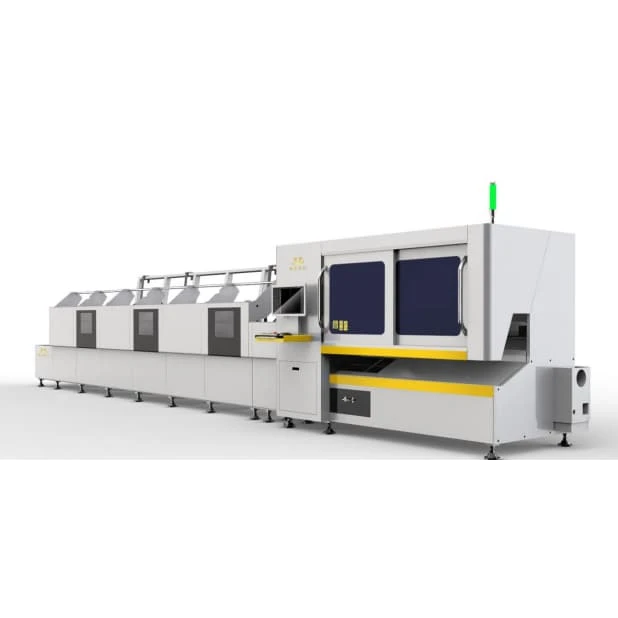

Enclosed 3D Tube Laser Cutting Machine

Tube cutting makes more dust than sheet cutting. The cutting area is narrow, so dust does not spread easily. Over time, dust can hurt the cutting head lens and the light path. The Enclosed 3D Tube Laser Cutting Machine has a full cover. A separate dust channel sits inside the cover. Dust from the cut source is pulled away at once. This model targets tubes below 90mm. A bundle loading rack separates and feeds tubes automatically. A four-jaw chuck holds small tubes without crushing them. Changing the chuck head takes less than 3 minutes. If a buyer switches between several tube sizes often, this speed matters. The full cover also blocks noise and light. Several machines can run in the same workshop without disturbing each other. Materials include carbon steel, stainless steel, aluminum, and copper. Tube types cover round, square, and special shapes. The Enclosed 3D Tube Laser Cutting Machine gives a clean and quiet cutting cell.

The Enclosed 3D Tube Laser Cutting Machine has a tube load of 2000kg. Single feed length is 750mm. Z-axis stroke is 2200mm. Positioning accuracy is ±0.02mm. Max acceleration is 1.0G. We do not use area agents. All buyers work directly with the factory. Before shipment, we assemble and test the machine. If conditions allow, buyers can send material for a test cut. We provide a complete test video. The machine ships with a manual, electrical drawings, special tools, and a set of random spare parts. Before installation, our technicians check the buyer site power capacity, compressed air pressure, and floor space by remote video.

We support the Enclosed 3D Tube Laser Cutting Machine with a clear service system. When a buyer reports a fault, we give a first solution within 1 hour. We use phone or video help first. Remote help can solve many common issues fast. If remote help fails, we send a technician. We tell the buyer the expected arrival time before the trip. During warranty, machine body quality problems get free repair and free replacement parts. Wearing parts and site environment problems are not free. The machine comes with a 2-year warranty and lifetime maintenance support.
