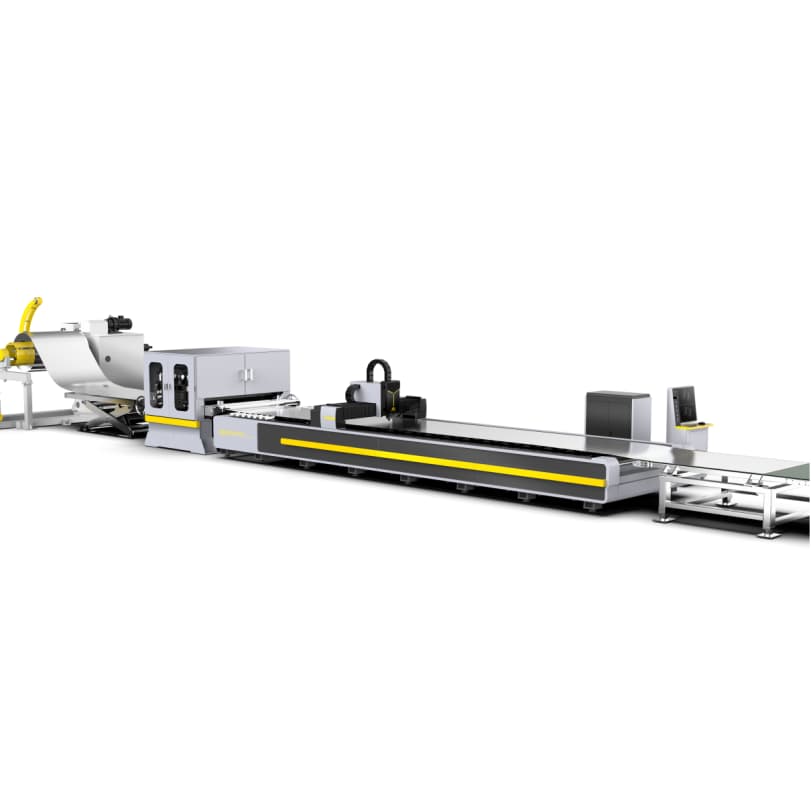

Heavy Duty Coil Fed Laser Line

Some buyers make spliced doors. The door face and door frame are large parts. A common coil line is not wide enough. The sheet goes past the machine travel. Workers must clamp the sheet again and set the position again. Accuracy drops after each extra step. The Heavy Duty Coil Fed Laser Line solves this problem. The coil rack is 1650mm wide. The rack holds 12 tons. A hydraulic tightener works with a press arm and a support arm. A heavy coil stays steady. The leveler uses 16 rolls. Common lines use 13 rolls. Three more rolls make patterned sheets much flatter. A double correction system watches the material edge. It corrects the line right away when the sheet moves off track. The PTmacro master control runs the whole line. Uncoiling, leveling, feeding, cutting, and unloading all run automatically. The line fits door frames, door heads, door posts, and other long parts. Buyers get a strong base for large door parts.

The machine covers 3000W to 6000W laser power. The working area is 6300mm by 1600mm. The X-axis travel is 1600mm. The Y-axis travel is 6300mm. The Z-axis travel is 110mm. Positioning accuracy is ±0.02mm. Max acceleration is 1.2G. This line does not offer free samples. But it can test small workpieces for free. Custom sample development takes about 60 to 90 days. Buyers can send drawings or real parts. Our team checks the process without making a new mold. This saves time and cost. The line also works with door industry ERP software. The system plans material type, quantity, and size each day. Width and length can be customized. The line is not locked to one fixed size.

We support the Heavy Duty Coil Fed Laser Line with a clear service system. When a buyer reports a fault, we give a first solution within 1 hour. We use phone or video help first. Remote help can solve many common issues fast. If remote help fails, we send a technician. We tell the buyer the expected arrival time before the trip. During warranty, machine body quality problems get free repair and free replacement parts. Wearing parts and site environment problems are not free. Each machine has a file. The file records factory configuration, contact person, and service history. After warranty, we still offer paid repair and yearly maintenance. All prices are clear. The machine comes with a 2-year warranty and lifetime maintenance support.
