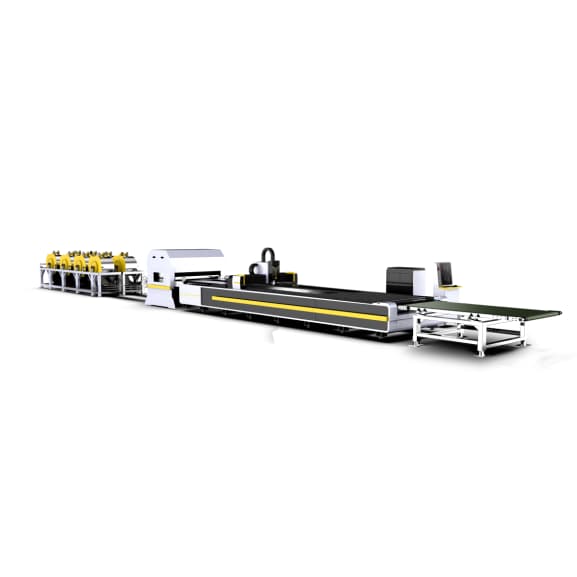

Multi Section Coil Fed Laser Line

A door frame has a straight side, a top part, and a bottom part. The common way cuts them separately. Workers stack them separately. Then they move the parts to the assembly area. The process has many steps. It moves slowly. Mistakes happen in the middle. The Multi Section Coil Fed Laser Line combines these steps. The technology has a patent. The PTmacro master control splits the cutting task into several sections. Two coils feed in one after the other. The line cuts the straight side, the top part, and the bottom part in one pass. Finished parts go straight to the picking area. Workers do not need to move them again. A coding system and a QR code scanner can work with the line. Each part gets its own trace code. The line runs without an operator standing beside it. The line works with 0.6mm to 2mm material. The left and right work stations cover 6000mm by 1600mm.

The machine covers 3000W to 6000W laser power. The X-axis travel is 1600mm. The Y-axis travel is 6100mm. The Z-axis travel is 110mm. Positioning accuracy is ±0.02mm. Max acceleration is 1.2G. This line uses the PTmacro multi-section control method. Our R&D team sits in Hangzhou. This team works on industrial software, control systems, and vision algorithms. The Yongkang factory builds and assembles machines. The two teams work together. When a buyer has a software and hardware link problem, both sides can check at the same time. Many door brands in Zhejiang already use this type of line. Buyers get a line that saves labor and improves part flow.

We support the Multi Section Coil Fed Laser Line with a clear service system. When a buyer reports a fault, we give a first solution within 1 hour. We use phone or video help first. Remote help can solve many common issues fast. If remote help fails, we send a technician. We tell the buyer the expected arrival time before the trip. During warranty, machine body quality problems get free repair and free replacement parts. Wearing parts and site environment problems are not free. Each machine has a file. The file records factory configuration, contact person, and service history. After warranty, we still offer paid repair and yearly maintenance. All prices are clear.
