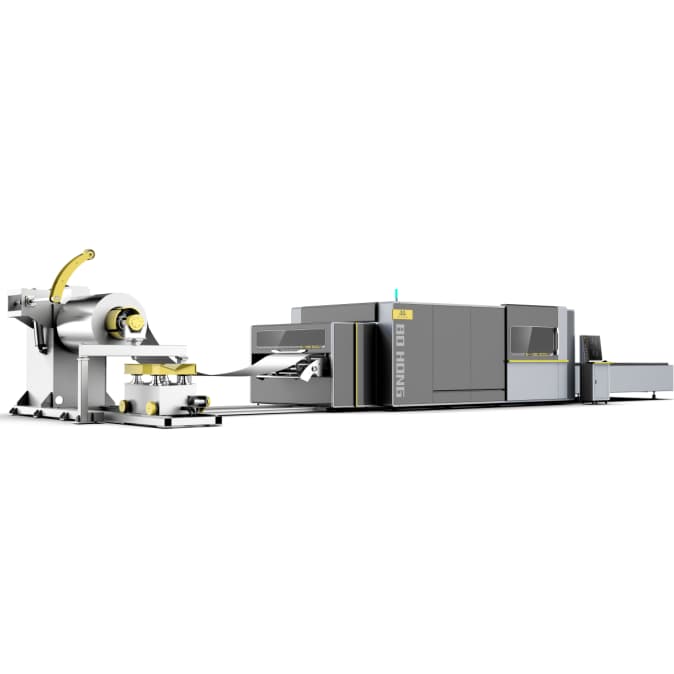

Single Station Enclosed Coil Laser Cutting Line

Many door makers start with a small budget. They also have a small workshop. A big coil line costs too much. A single sheet cutter is too slow. The Single Station Enclosed Coil Laser Cutting Line fills this gap. This line puts the coil rack, leveler, cutter, and dust collector into one unit. The floor space is very small. The rack holds 10 to 15 tons. A hydraulic tightener and a frequency drive keep the coil steady. The leveler uses 12 rolls. It flattens patterned sheets to meet cutting needs. The full enclosure keeps dust and light inside. Workers pick parts outside the cover. A built-in pick table sits next to the cutting area. Finished parts slide into the pick zone. Workers can stack them right away. This line fits door faces, door heads, door posts, and cabinet parts. It works with 0.6mm to 2mm material.

The Single Station Enclosed Coil Laser Cutting Line runs on 1000W to 6000W laser power. The working area is 4200mm by 1500mm. The X-axis travel is 1550mm. The Y-axis travel is 4300mm. The Z-axis travel is 110mm. Positioning accuracy is ±0.02mm. Max acceleration is 1.2G. Buyers get a clear machine for daily production. The line uses the PTmacro master control system. It works with door industry ERP software. The system plans material type, quantity, and size each day. Width and length can be customized. The line is not locked to one fixed size. The machine also supports a coding system and a QR code scanner. Each part gets its own trace code. The line runs with few workers. This lowers labor cost for small factories.

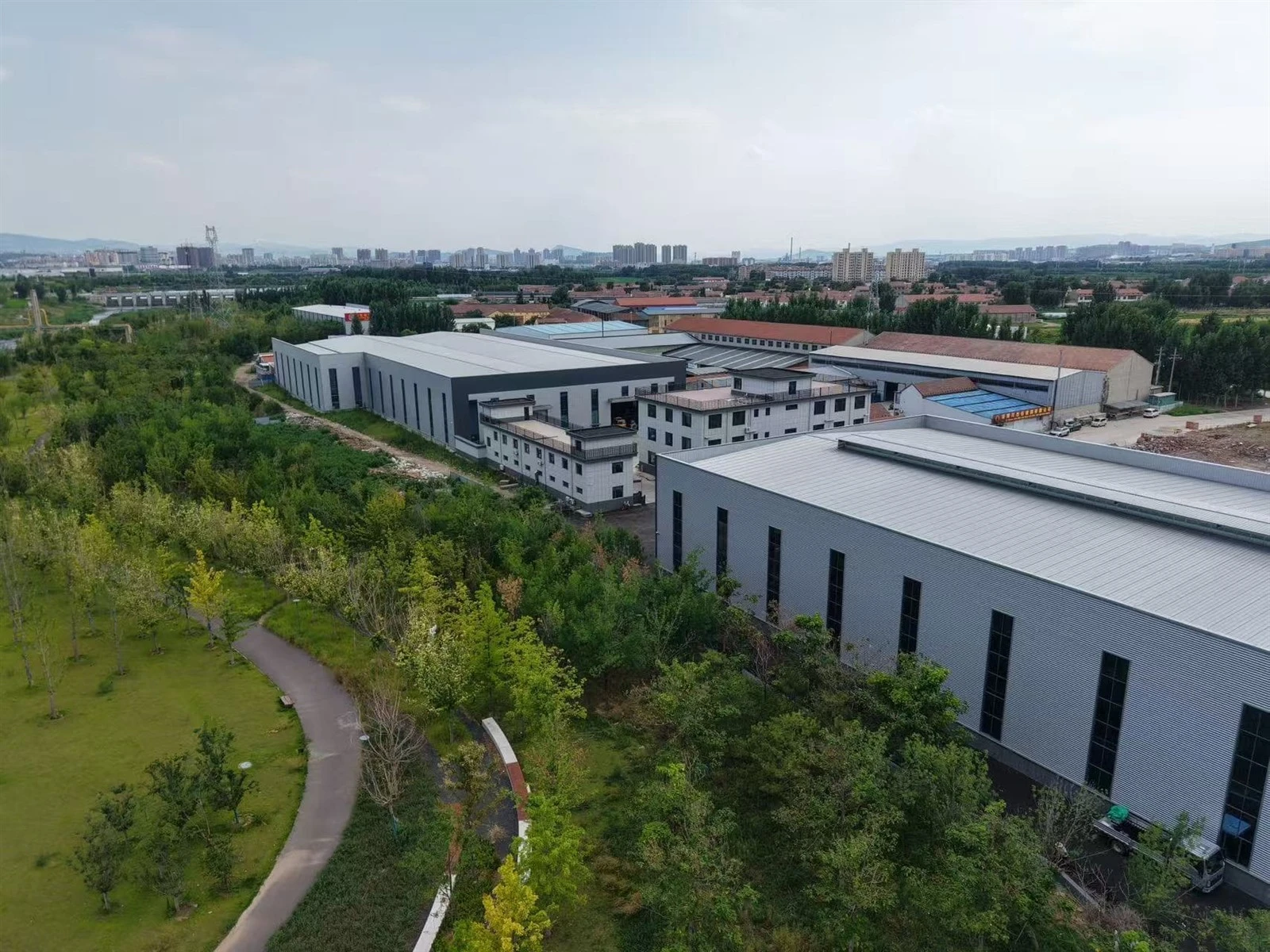

We are in Yongkang City. Our factory has a product showroom. Buyers can bring their own material and test cut on site. They can compare different models side by side. Our technicians have real work experience in door factories. They suggest the right configuration from a production view. They do not just read numbers from a sheet. The Single Station Enclosed Coil Laser Cutting Line comes with a 2-year warranty and lifetime maintenance. We support installation and operator training. We also help buyers plan the line layout before shipment. We accept USD and RUB. Standard products use 30% deposit and 70% balance before shipment. Export packing uses inner protection, aluminum foil vacuum bag, buffer material, export wooden case, and IPPC wooden pallet. This keeps the line safe on the sea. We support EXW. Buyers can arrange transport with their own forwarder.
