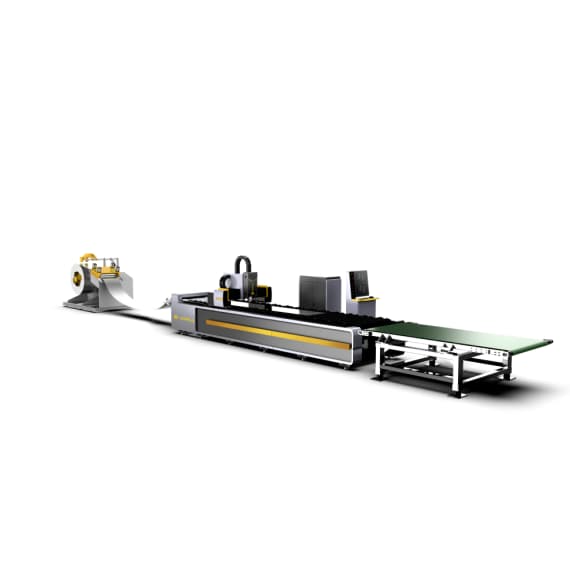

Precision Cut To Length Coil Laser Cutting Line

Door frame straight sides and top and bottom parts have fixed lengths. Most standard door sizes use a few set lengths. Using a large machine to cut small parts wastes space and time. The Precision Cut To Length Coil Laser Cutting Line focuses on this job. The working area is 4200mm by 650mm. The machine is smaller and lighter. A semi-enclosed design controls cost and keeps basic protection. The PTmacro master control still supports multi-section cutting. One coil feeds in. Straight sides and matching parts cut in order. No manual intervention is needed. A QR code scanner and a coding system are optional. The line suits standard door frame batch production. It works with 1.0mm to 2.0mm material. The Precision Cut To Length Coil Laser Cutting Line gives door makers a fast and focused tool.

The Precision Cut To Length Coil Laser Cutting Line runs on 3000W to 6000W laser power. The X-axis travel is 650mm. The Y-axis travel is 4300mm. The Z-axis travel is 110mm. Positioning accuracy is ±0.02mm. Max acceleration is 1.0G. Rapid traverse speed is 80M/min. The line uses the PTmacro master control system. It works with door industry ERP software. The system plans material type, quantity, and size each day. Width and length can be customized. The line is not locked to one fixed size. Buyers can send material for a test run. We provide a test video before shipment.

We support the Precision Cut To Length Coil Laser Cutting Line with a fast service system. When a buyer reports a fault, we give a first solution within 1 hour. We use phone or video help first. Remote help can solve many common issues fast. If remote help fails, we send a technician with spare parts. We tell the buyer the expected arrival time before the trip. During warranty, machine body quality problems get free repair and free replacement parts. Wearing parts and site environment problems are not free. Our rule is to help the buyer restart production first. Then we talk about fault responsibility. The line comes with a 2-year warranty and lifetime maintenance support. We also help with installation and operator training.
