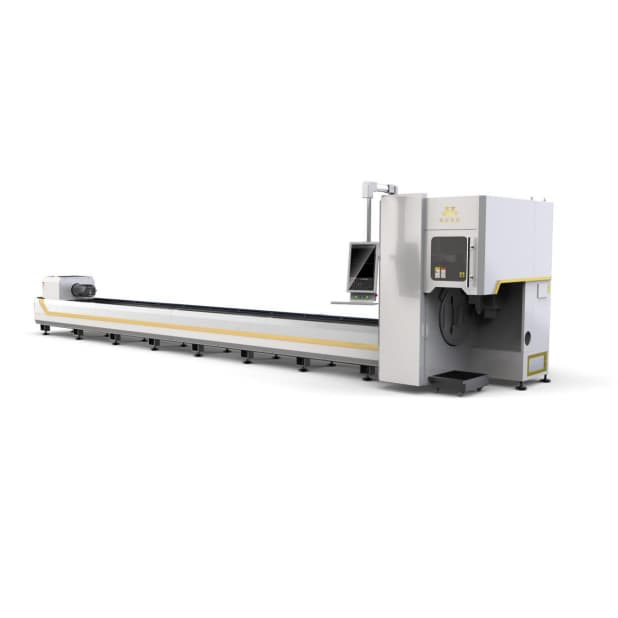

Heavy Duty 3D Laser Tube Cutting Machine

Thicker and heavier tubes are harder to cut. Round tubes, square tubes, and channel steel need strong chuck holding force and spindle torque. The Heavy Duty 3D Laser Tube Cutting Machine handles 1000kg under a 240 chuck. Common tubes do not need a fixture change. A bundle loading rack sits at the side of the main machine. The machine takes tubes from the rack, feeds them, cuts them, and outputs them automatically. Single feed length is 750mm. Z-axis adjustment range is 65mm. W-axis turns 360 degrees. Cutting shapes are edited by commands. Common round holes, square holes, angle cuts, and intersecting lines have ready commands. Materials include carbon steel, stainless steel, aluminum, and copper. Tube types include round, square, channel steel, and many special shapes. The Heavy Duty 3D Laser Tube Cutting Machine gives strong power for heavy tube work.

The Heavy Duty 3D Laser Tube Cutting Machine has a tube load of 1000kg. Single feed length is 750mm. Z-axis stroke is 2200mm. Positioning accuracy is ±0.02mm. Max acceleration is 1.0G. Rapid traverse speed is 60M/min. The machine uses a 240 hollow rotary chuck. The chuck speed reaches over 150 rpm. Different tube sizes do not need fixture changes. Standard product delivery time is 30 to 60 days. Custom product delivery time is 60 to 90 days. Repeat orders ship faster because the process and program are fixed. Monthly capacity is about 20 machines. We plan production by order priority and delivery date. We promise a final delivery date based on normal production time plus 15 days of buffer.

We support the Heavy Duty 3D Laser Tube Cutting Machine with a clear service system. When a buyer reports a fault, we give a first solution within 1 hour. We use phone or video help first. Remote help can solve many common issues fast. If remote help fails, we send a technician. We tell the buyer the expected arrival time before the trip. During warranty, machine body quality problems get free repair and free replacement parts. Wearing parts and site environment problems are not free. The machine comes with a 2-year warranty and lifetime maintenance support.
