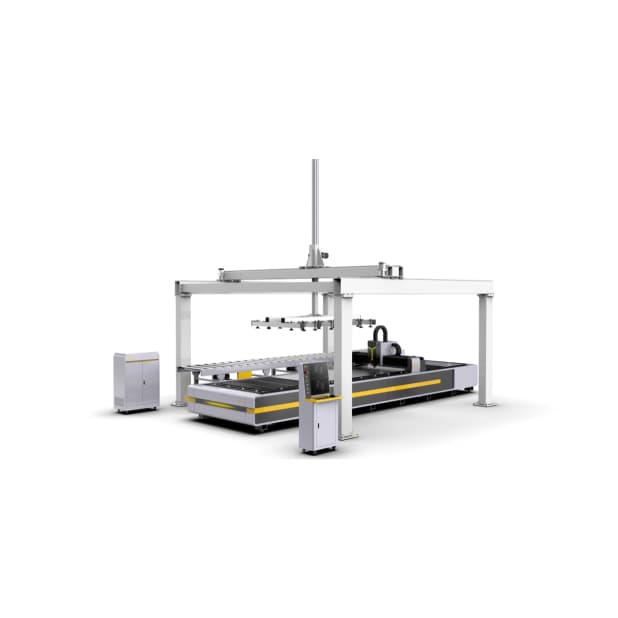

Gantry Loading Robot

Laser cutters run faster and faster. The loading and unloading worker cannot keep up. A high-speed laser cuts hundreds of sheets a day. Workers carry sheets up and down all day. They get tired. The speed still cannot match the machine. The Gantry Loading Robot fills this gap. A gantry frame crosses over the laser cutter. X, Y, and Z axes use servo drive. The frame uses high-strength square steel. After aging treatment, internal stress is gone. The structure stays stable. Precision linear guides and servo drive give high repeat accuracy. A single suction cup with six stations picks and places sheets. The suction cups take turns. The robot matches the laser cutting pace. The path is set by a PLC control system. The screen is simple. Parameters are easy to change. The Gantry Loading Robot gives a smooth flow between cutting and handling.

The Gantry Loading Robot has a load of 60kg. The moving range is 5800mm by 5600mm. The X-axis travel is 5800mm. The Y-axis travel is 6000mm. The Z-axis travel is 2200mm. Positioning accuracy is ±0.02mm. Max acceleration is 1.0G. Rapid traverse speed is 60M/min. This robot fits the full Bohong series. It works with existing cutters. Our factory technicians can go to the buyer site and help with installation and debugging. They make sure the robot and the cutter work at the best pace. The Gantry Loading Robot gives buyers a clear path to automatic handling.

We support the Gantry Loading Robot with a clear service system. Before shipment, we assemble and test the machine. Buyers can send material for a test run. We provide a complete test video. After installation, training covers start and stop steps, parameter adjustment, alarm recognition, and daily checks. Our team answers questions within one working day. We also help with line layout and daily service. The robot comes with a 2-year warranty and lifetime maintenance support. We accept USD and RUB. Standard products use 30% deposit and 70% balance before shipment. Export packing uses inner protection, aluminum foil vacuum bag, buffer material, export wooden case, and IPPC wooden pallet.
