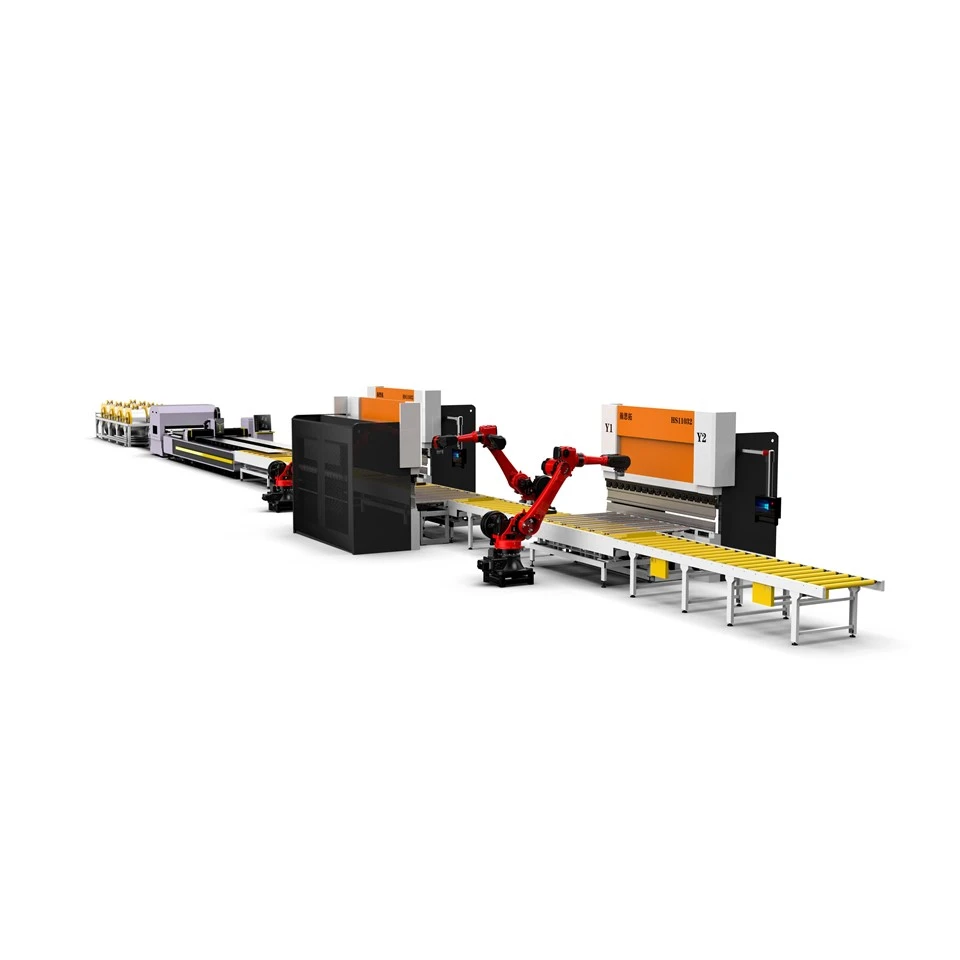

Standard Door Frame Production Line

Standard door frames have fixed sizes. This makes them good for batch production. But fixed sizes still need exact matching. The straight sides and top and bottom parts must fit together. A small size error stops assembly. The Standard Door Frame Production Line keeps sizes consistent at high speed. Two coil racks sit side by side. One coil runs out. The second coil takes over without a stop. The slit coil goes into a dual-station coil laser cutting line. Two cutting systems work at the same time. The frame parts come out in order on one line. The cut parts move on a roller line and a cross transfer unit to the frame press and bending machine. The Standard Door Frame Production Line gives high output for standard door frames.

The Standard Door Frame Production Line uses two coil racks. The line includes a slitting coil, a dual-station coil laser cutting line, a roller line, a cross transfer unit, a lifting unit, a door frame press, a bending machine, an edge folding machine, and a robot. The line runs in full automatic linkage. The material thickness range is 1.0mm to 2.0mm. When the product changes, the system calls the right recipe. The machine adjusts itself. The Standard Door Frame Production Line fits large batch production of standard door frames. It works with door industry ERP software. The system plans material type, quantity, and size each day.

We build the Standard Door Frame Production Line for global buyers. The line includes two coil racks, a coil cutting line, a roller line, a press, a bending machine, and a robot. It fits standard door frames. The line runs in full automatic linkage. The material thickness is 1.0mm to 2.0mm. The size and configuration can be customized. We provide a test run before shipment. The Standard Door Frame Production Line comes with a 2-year warranty and lifetime maintenance support.
